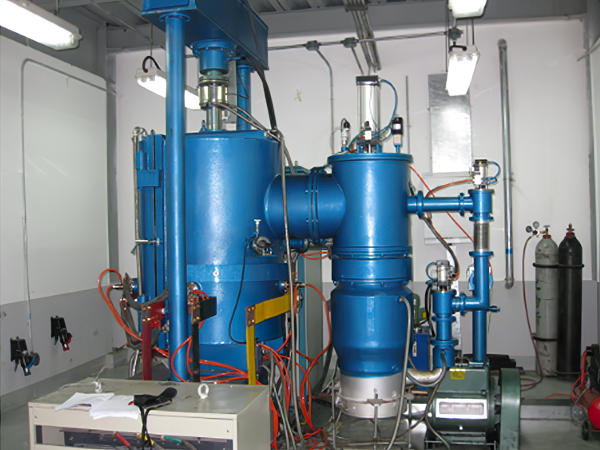

Vacuum hot press sintering furnace

Material proper to sinter:SSIC ceramic,AIN ceramic,carbon material and other material proper to sinter in the hot press atmosphere.

Consult now

Introduction

Material proper to sinter:SSIC ceramic,AIN ceramic,carbon material and other material proper to sinter in the hot press atmosphere.
Application:It is a type furnace of induction heating high temperature vacuum furnace,with excellent temperature uniformity,proper to high temperature sintering and degreasing for SSIC,AIN,carbon material and carbon ceramic composites.Adopting SIC control system,with alarm system on the short circuit,false triggering,over pressing and over temperature,also can be working in the vacuum or inert gas atmosphere.

Model no.	Working size D x H（ mm）	Max. working temperature(℃)	Ultimate vacuum(Pa)	Press rise rate (Pa/h)	Rate power (Kw)	Pressure(T)	Displacemenet (mm)
NTI-RYL-20T	ф160x160	2400	6*10^-3	3	40	20	0-100
NTI-RYL-50T	ф200x300	2400	6*10^-3	5	75	50	0-150
NTI-RYL-100T	ф300x400	2400	6*10^-3	6	150	100	0-250
NTI-RYL-200T	ф400x500	2400	6*10^-3	6	250	200	0-350
NTI-RYL-400T	ф500x600	2400	6*10^-3	6	400	400	0-450
NTI-RYL-600T	ф600x700	2400	6*10^-3	6	550	600	0-550
NTI-RYL-800T	ф700x800	2400	6*10^-3	6	700	800	0-650

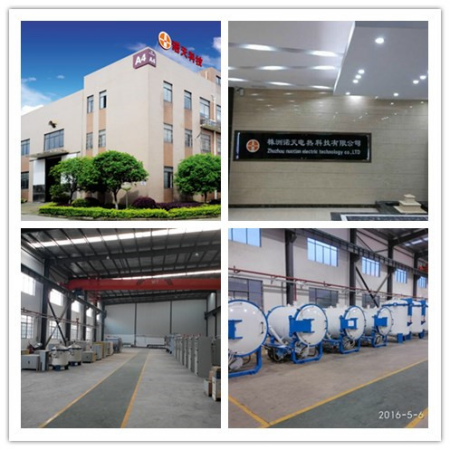

Company information
We are real and professional OEM of industry furnace over 10 years who has 10 staff of designer and technican experienced for years,
Main manufacturing products:Graphitization furnace,carbonization furnace,resistance furnace,de-rubber furnace,de-wax furnace,de-grease furnace,laboratory furnace,sintering furnace,melting furnace,quenching equipment,hardening equipment,
anneal equipment and tempering equipment.
IF heating device,ultra audio induction heating equipment,
IF diathermy,hardening,welding equipment,
IF bending pipe machine,cooling tower,
graphite crucible,hard composite carbon felt
and such related industry products.

Clients visit
We have lots of famous clients from the world like Korea,Vietnam,Thailand,Malysia,Russia,Georgia,Ukraine and so on.

Honor of qualification

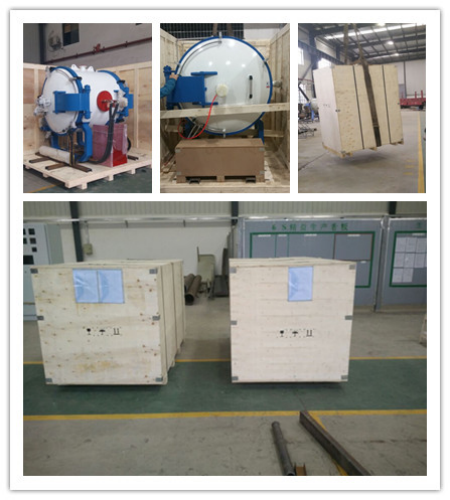

Packing mode

Service
1.Special size and requirement furnace can be customized.
2.The using method and operation and related knowledge taught by our engineer before shipment.
3.Engineers available to service machinery overseas after-sales service provided.
4.Payment Terms:T/T.
5.Price terms:FOB Guangzhou,China
6.Transport way:by sea,we have good forwarders,super service and price!
7.Delvery time:Estimated time of delivery is 60 days after confirming to receive the deposit payment.
8.1 year of warranty.
9.Other services:we can produce furnace according to your drawing design or requirements.
Better technology,better quality,better price and better service.
