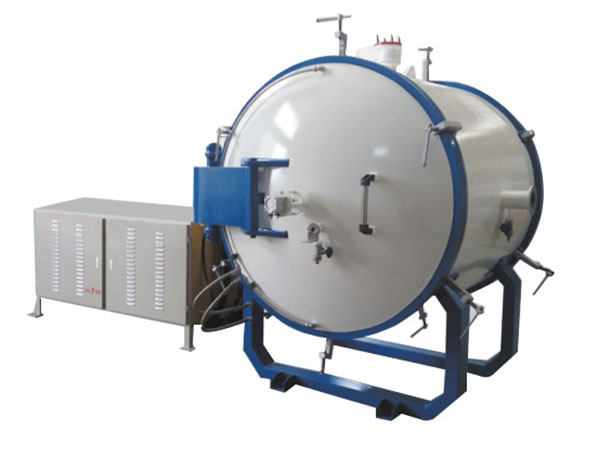

Refractory film materials heat treatment furnace

The equipment mainly used in the HT heating treatment on carbon material, carbon nano, carbon fiber, negative electrode materials, graphite powder, contacting terminal material and such related material.

Consult now

Introduction

Applicable in high temperature graphitization treatment of thermal conductive material graphite film,new materials,carbon and carbon materials,special ceramics industry.

Model

Parameter

Lab usage

Production usage

NTI-SML-54W

NTI-SML-98W

NTI-SML-182W

NTI-SML-400W

NTI-SML-576W

NTI-SML-1280W

Working size

300×300×600

350×350×800

450×450×900

500×500×1600

600×600×1600

800×800×2000

Heating type

IF induction heating

Control type

Thyristor control or IGBT control ( optional )

HT zone capacity

182

400

576

1280

Loading weight

HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3

Ultimate vacuum

IF power

150

200

250

400

500

700

Max. working temperature

℃

3000

2900

Usual working temperature

℃

2800

Temperature unifomity

℃

±10

±15

Working environment

Vacuum or Argon atmosphere protection( micro positive pressure)

Overall dimension

Weight

You can customize it as per your real requirement.
